Jazzmaster & Jaguar parts
Compare complete offset-style bridges and replacement threaded saddles for a Jazzmaster or Jaguar-style setup. Some listings also name Mustang-style guitars. These are measurement-led candidates: confirm the post arrangement, string path and required radius on your own instrument before choosing a bridge or saddle option.
Check before you choose
Choose the string spacing
The selected bridges include separate 52.5 mm and 55 mm E-to-E versions. Measure between the outer string centres at the saddles and check the string path along the neck; the family name does not choose the spacing.
Check posts, thimbles and radius
The selected complete bridges list 73 mm post spacing and 9 mm posts. Compare these with your mounting hardware, then confirm height adjustment and the required saddle radius. Matching string spacing alone is insufficient.
Select the saddle-width option
The threaded saddle set has 10.5 mm / 52.5 mm E-to-E and 11 mm / 55 mm E-to-E options. Compare the selected width, the listed 6.8 mm saddle diameter and the screw geometry with your bridge.
Selected parts
Open a product for its measurements, available options and fitment notes. Inclusion in this collection does not confirm compatibility with a particular guitar.
Bridge for Fender Mustang/Jaguar/Jazzmaster, 2 1/16 Spacing
A CNC-machined brass bridge and saddle assembly for a Jaguar, Jazzmaster or Mustang-style guitar. Steel posts and the listed string and post measurements provide the key checks for fit.

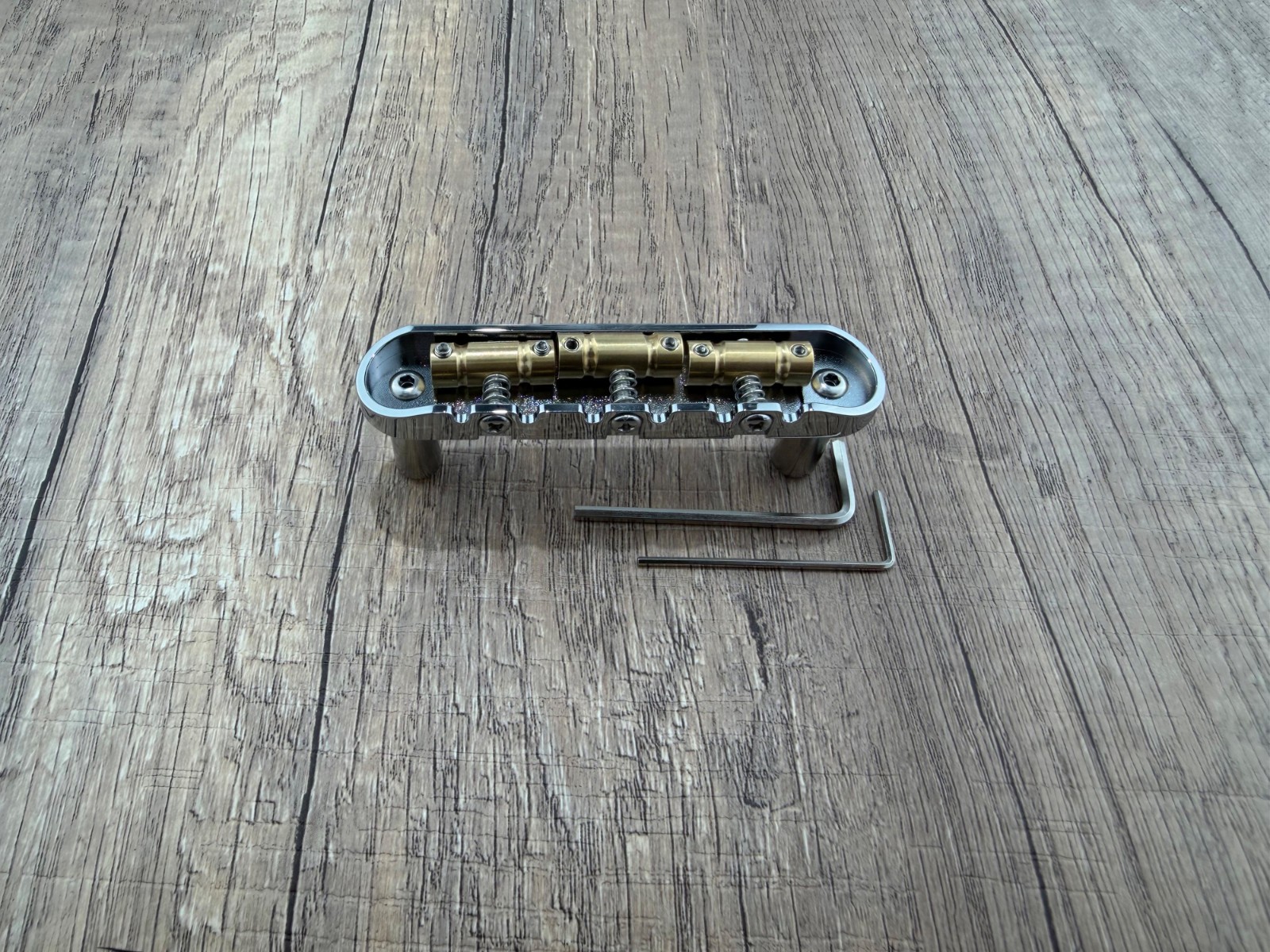

AUMSEN chrome bridge assembly for Jazzmaster and Jaguar 2 1/16 Spacing
A chrome-finished CNC-machined brass bridge and saddle assembly for a Jaguar, Jazzmaster or Mustang-style guitar. Steel posts and the listed string and post measurements provide the key checks for fit.
Mustang Bridge w/ Large Saddles, 55mm, Fender Jaguar Jazzmaster
A CNC-machined brass bridge with larger saddles for a Mustang, Jaguar or Jazzmaster-style guitar. Steel posts and the listed 55mm E-to-E string spacing define this variant.
Jazzmaster/Jaguar Bridge Threaded Vintage-Style Brass Saddles
Vintage-style threaded brass saddles for Jazzmaster/Jaguar-style bridges. Choose 10.5mm width for 52.5mm E-to-E spacing or 11mm width for 55mm E-to-E spacing. Saddle diameter is 6.8mm; compare your bridge dimensions before fitting.
2 options
