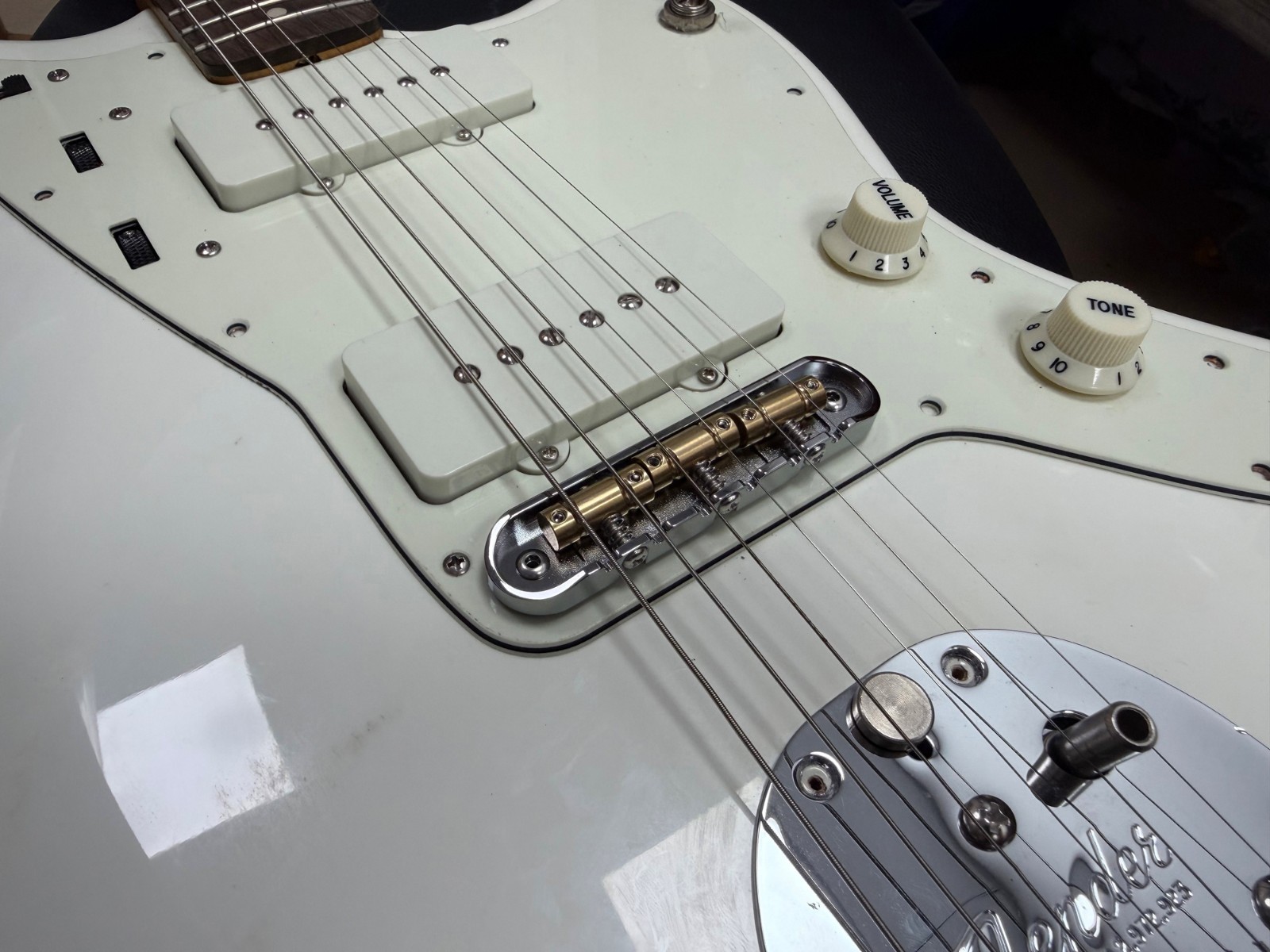

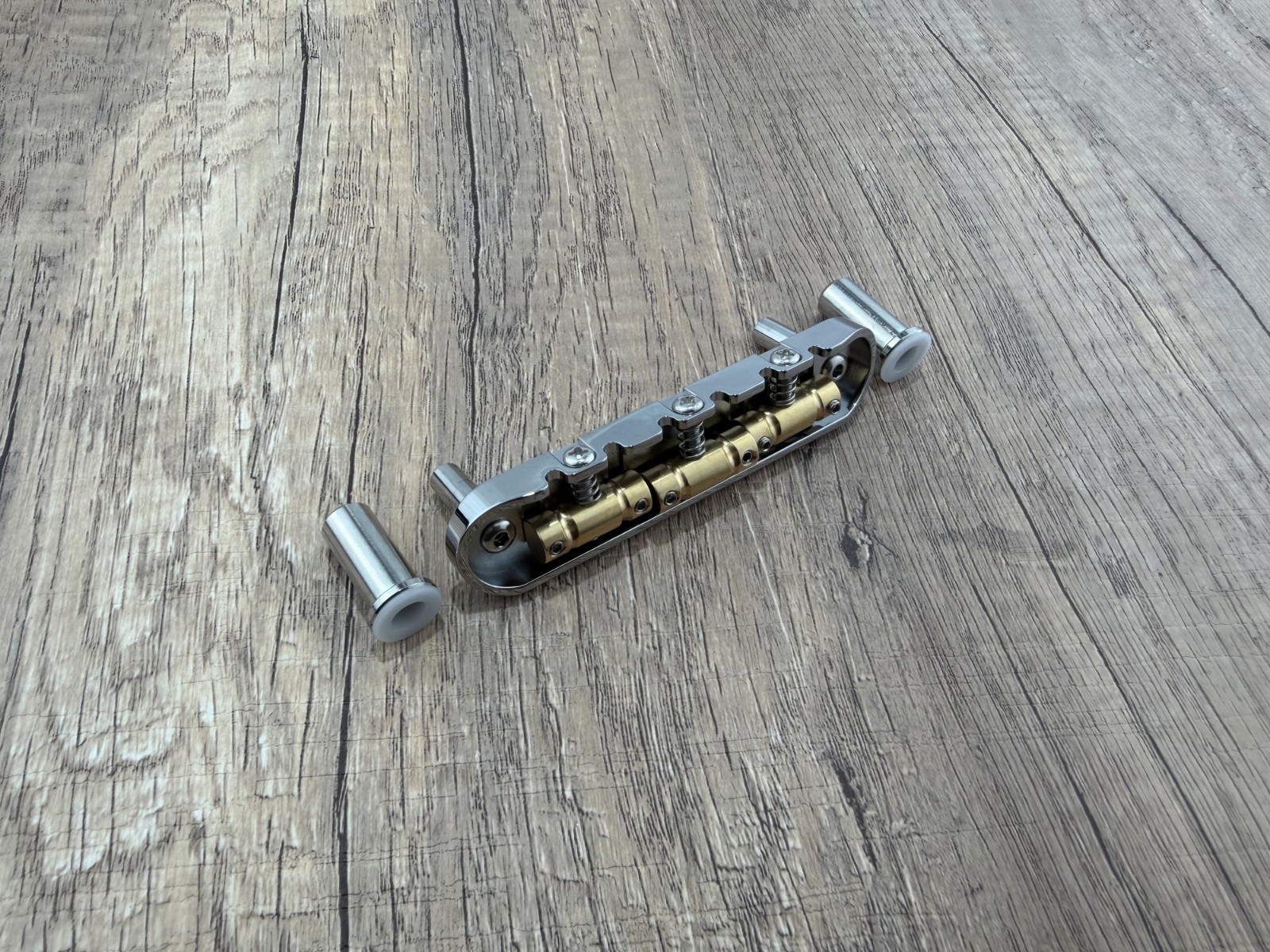

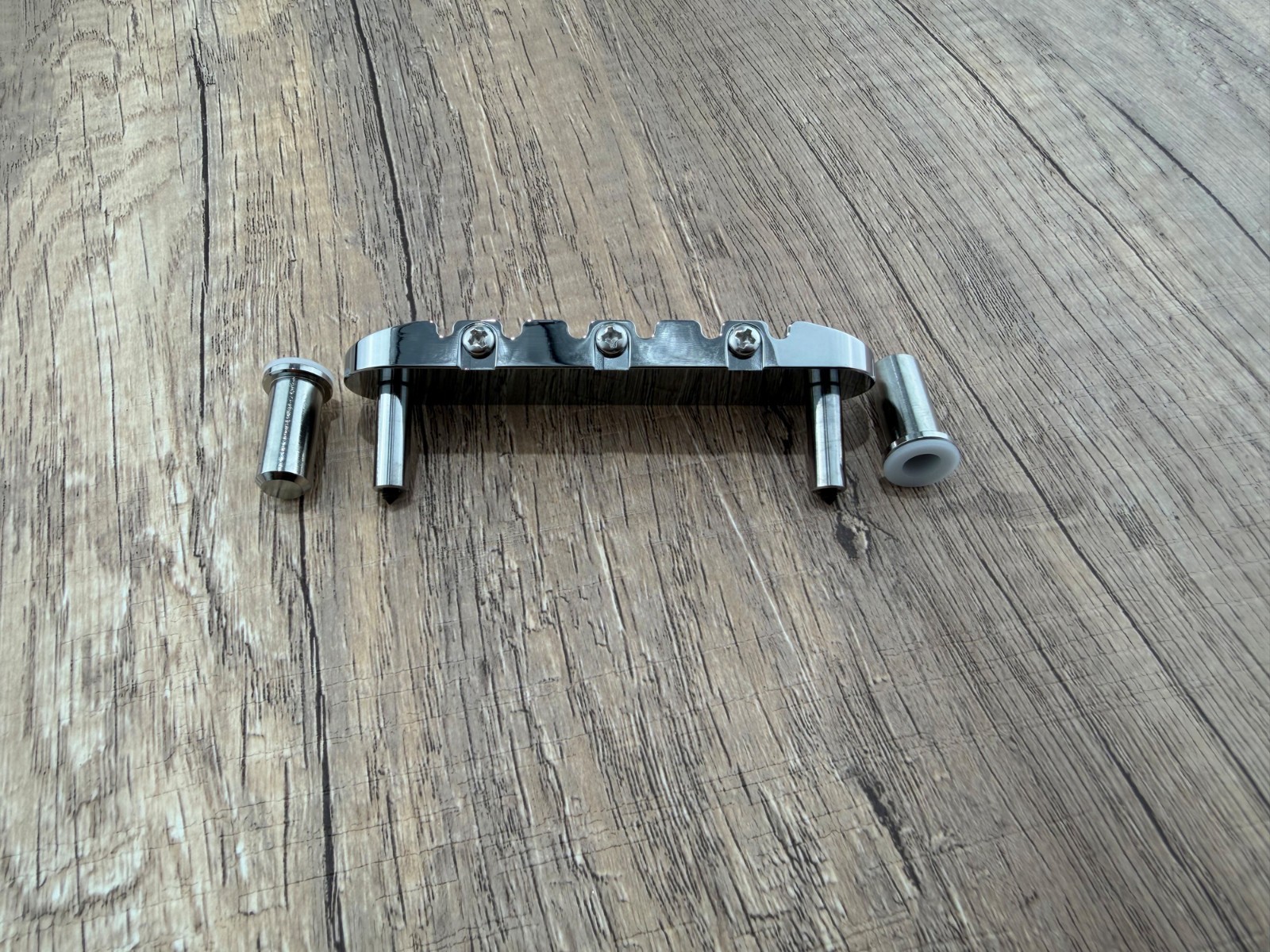

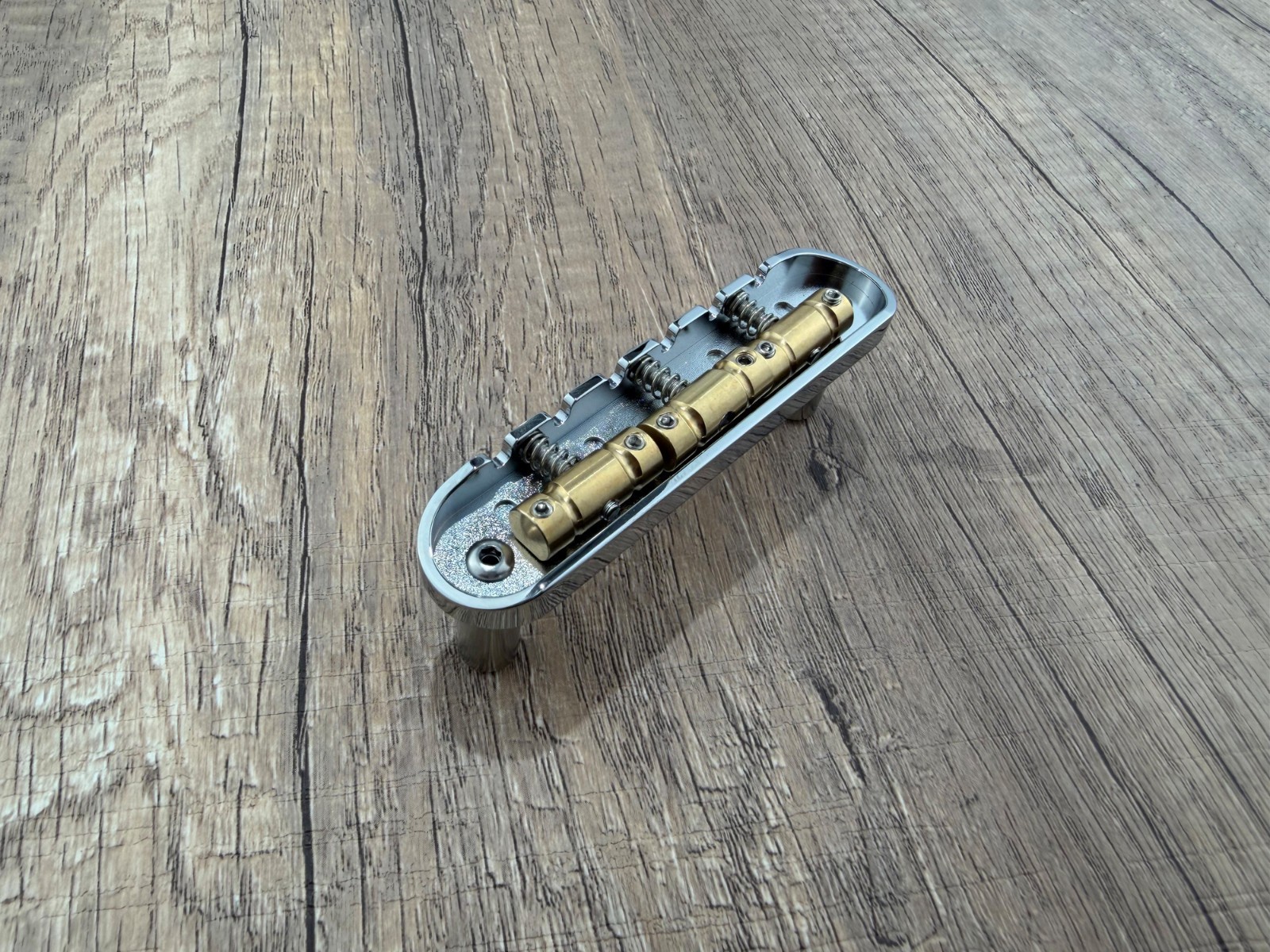

AUMSEN chrome bridge assembly for Jazzmaster and Jaguar 2 1/16 Spacing.
A chrome-finished CNC-machined brass bridge and saddle assembly for a Jaguar, Jazzmaster or Mustang-style guitar. Steel posts and the listed string and post measurements provide the key checks for fit.
SKU 267594017951
$31.99 USD
Taxes and import duties included. Delivery is shown in your cart.
| Specification | Details |
|---|---|
| Bridge and saddles | brass |
| Posts | steel |
| Process | CNC machining |
| Individual string spacing | 10.5mm |
| E-to-E string spacing | 2-1/16" (52.5mm) |
| Post spacing | 2-7/8" (73mm) |
| Post diameter | 9mm |
| Finish | chrome |
Check the listed material, finish and dimensions for this specific part.
Use the available dimension photos, or request measurements before ordering.
Website checkout prices include taxes and import duties. Ships from China to the United States, Australia, Japan, United Kingdom, Germany and Italy. Delivery is shown separately in your cart.
Read our website Returns & Shipping policy before ordering.
Fitment questions? Email contact@aumsen.com — we reply within 1–2 business days.
Before you order
Model names identify the wording in the catalogue, not a verified fit for every year or version. Match your existing part’s dimensions, mounting pattern and threads. Ask us before drilling or modifying your guitar.
Checking a chrome offset bridge assembly
- Compare post centre spacing and post diameter with the existing thimbles or mounts.
- Distinguish adjacent-string spacing from low-E to high-E spacing; they are not interchangeable measurements.
- Confirm saddle radius, bridge height and tremolo clearance for your particular Jazzmaster, Jaguar or Mustang-style build.
Package contents
Check this page’s description and specifications for the selected option. If package contents are unclear, ask us before ordering. A photo alone does not confirm that accessories or a printed drawing are included.
