Identify the part and the problem first
Photograph the bridge from above and from the side, and note whether you want to address a loose component, string movement, limited adjustment or simply a finish change. Check the current setup before choosing a replacement. The guitar’s model name does not identify every bridge fitted to it.
If something rattles, locate the moving part before changing hardware. Do not assume that every offset bridge should be locked in place or that adding sleeves, tape or a different bridge will solve the cause.
Compare the catalogue dimensions separately

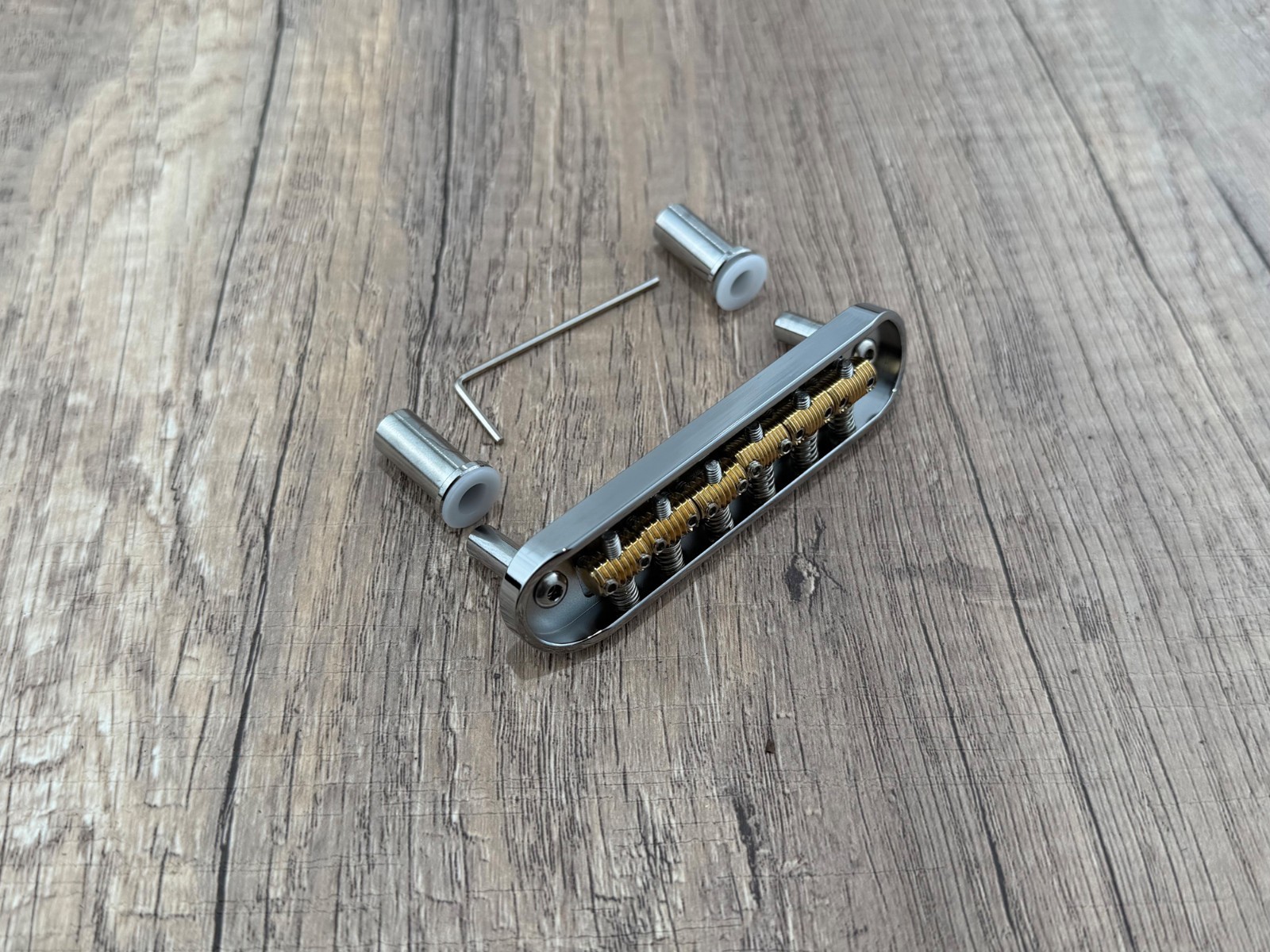

The linked natural-brass and chrome bridge assemblies list 10.5 mm individual string spacing, 52.5 mm E-to-E spacing, 73 mm post spacing and 9 mm post diameter. The large-saddle Mustang-style assembly lists 55 mm E-to-E spacing with 73 mm stud spacing and 9 mm post diameter.
Those shared post dimensions do not make the two string spreads equivalent. Check the outer strings’ position over your fretboard and the installed bridge’s height and saddle adjustment range.
Measure E-to-E spacing at the string contact points.
Measure post centres and compare post diameter, receiving sleeve dimensions and insertion depth.
Check achievable saddle height and string arc against the setup your guitar needs.
Confirm whether the replacement is intended to move or remain fixed during vibrato use.
Check saddle-only replacements just as carefully
The threaded brass saddle set lists 10.5 mm width, 6.8 mm diameter and 52.5 mm E-to-E spacing. Compare its screw arrangement, thread specification and adjustment clearance with the existing bridge before choosing it as a saddle-only change.
If a radius, thread or receiving-hole dimension is absent from the product page, ask for it. A photograph can show shape, but it cannot establish an unlisted tolerance.
Material and finish are different choices
The linked chrome assembly lists brass for both bridge and saddles, with steel posts. Chrome describes its finish, not a separate base alloy. Compare construction and fit first; the catalogue does not establish a particular tone or sustain improvement from either finish.
Frequently asked questions
Will a Mustang-style bridge fit any Jazzmaster?
No universal fit is established. Check string spread, post centres and diameter, receiving hardware, height range and the required string arc against the exact replacement.
Are these bridges guaranteed to fit without drilling?
The listed dimensions alone do not establish that for your guitar. Compare the installed hardware and request any missing fitment dimensions before altering the instrument.
