Fender Stratocaster Custom Modern, Bridge Tone Wiring Harness, 5-Way.

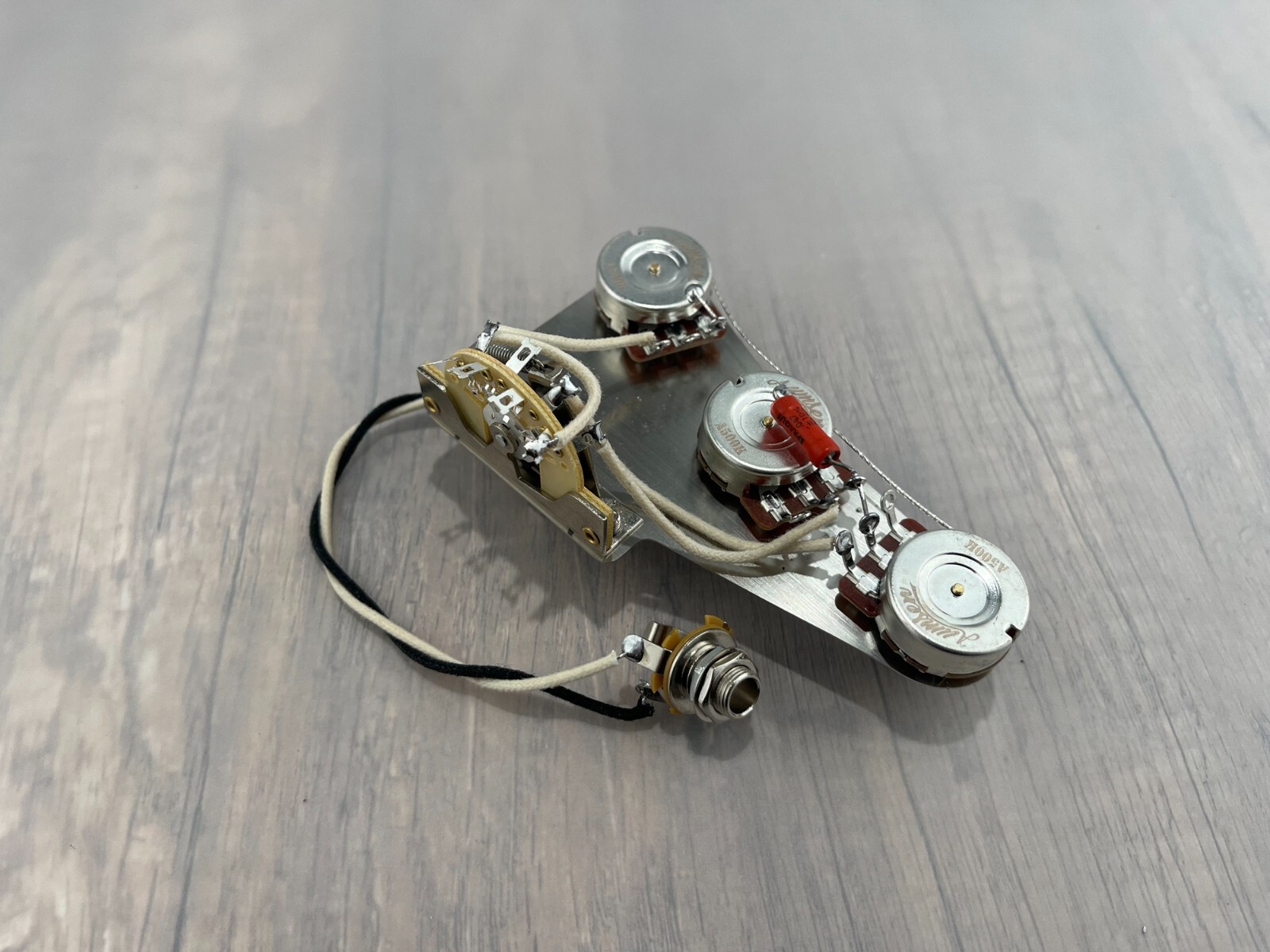

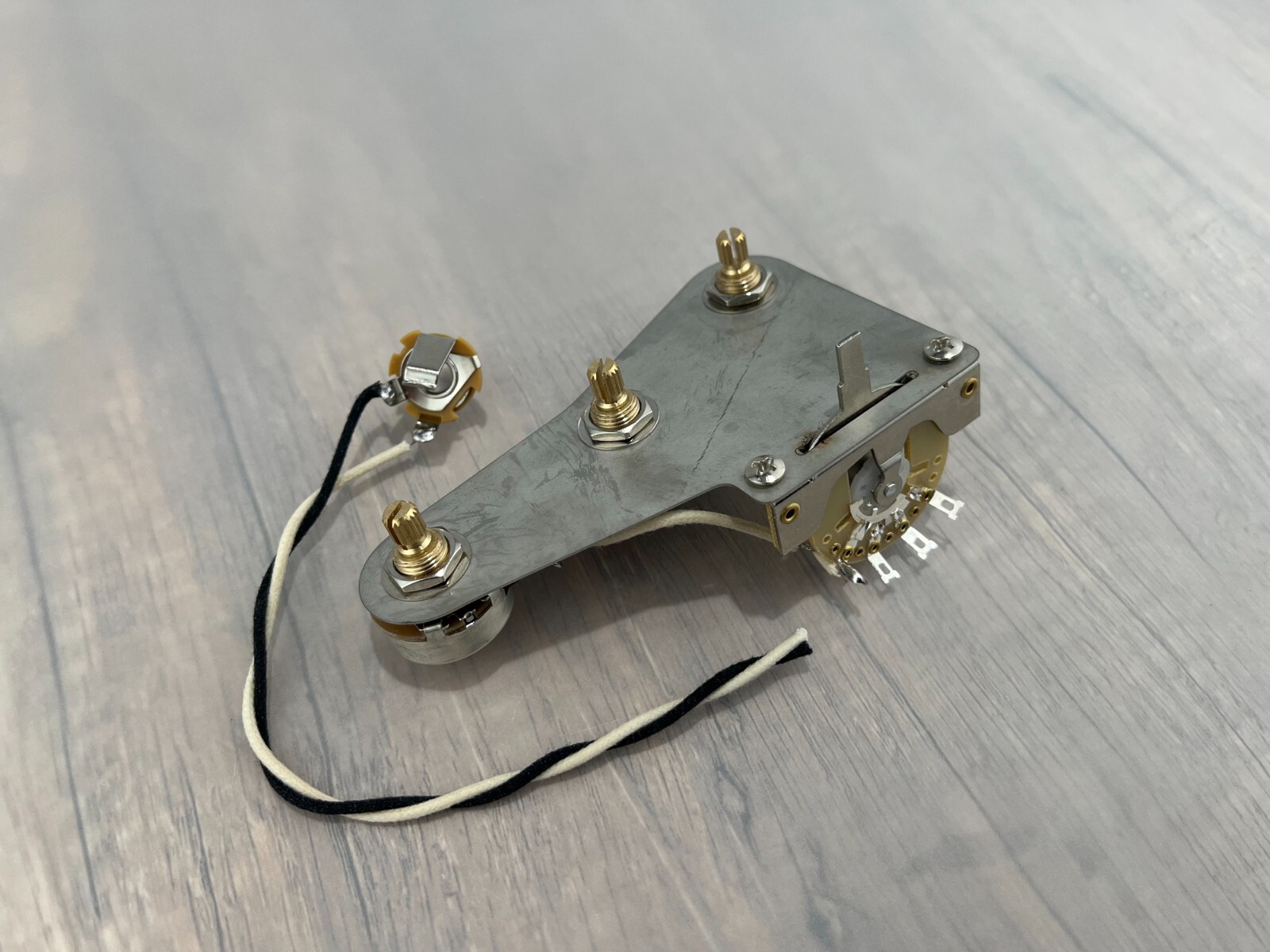

A Strat-style bridge-tone wiring harness built around A250K low-torque audio-taper potentiometers and a Philips Tropical Fish 0.022 capacitor. The five-way switch offers the familiar pickup-selection layout, while vintage-style Gavitt cloth wire suits a traditional control-cavity build.
SKU A250KP0022
Selected option: A250K Philips 0.022
$19.99 USD
Taxes and import duties included. Delivery is shown in your cart.
| Specification | Details |
|---|---|
| Potentiometers | A250K audio taper, low torque |
| Capacitor option | Philips Tropical Fish 0.022 |
| Switch | 5-way |
| Wire | vintage-style Gavitt cloth wire |
Check the listed material, finish and dimensions for this specific part.
Use the available dimension photos, or request measurements before ordering.
Website checkout prices include taxes and import duties. Ships from China to the United States, Australia, Japan, United Kingdom, Germany and Italy. Delivery is shown separately in your cart.
Read our website Returns & Shipping policy before ordering.
Fitment questions? Email contact@aumsen.com — we reply within 1–2 business days.
Before you order
Model names identify the wording in the catalogue, not a verified fit for every year or version. Match your existing part’s dimensions, mounting pattern and threads. Ask us before drilling or modifying your guitar.
Choosing a five-way Strat-style wiring harness

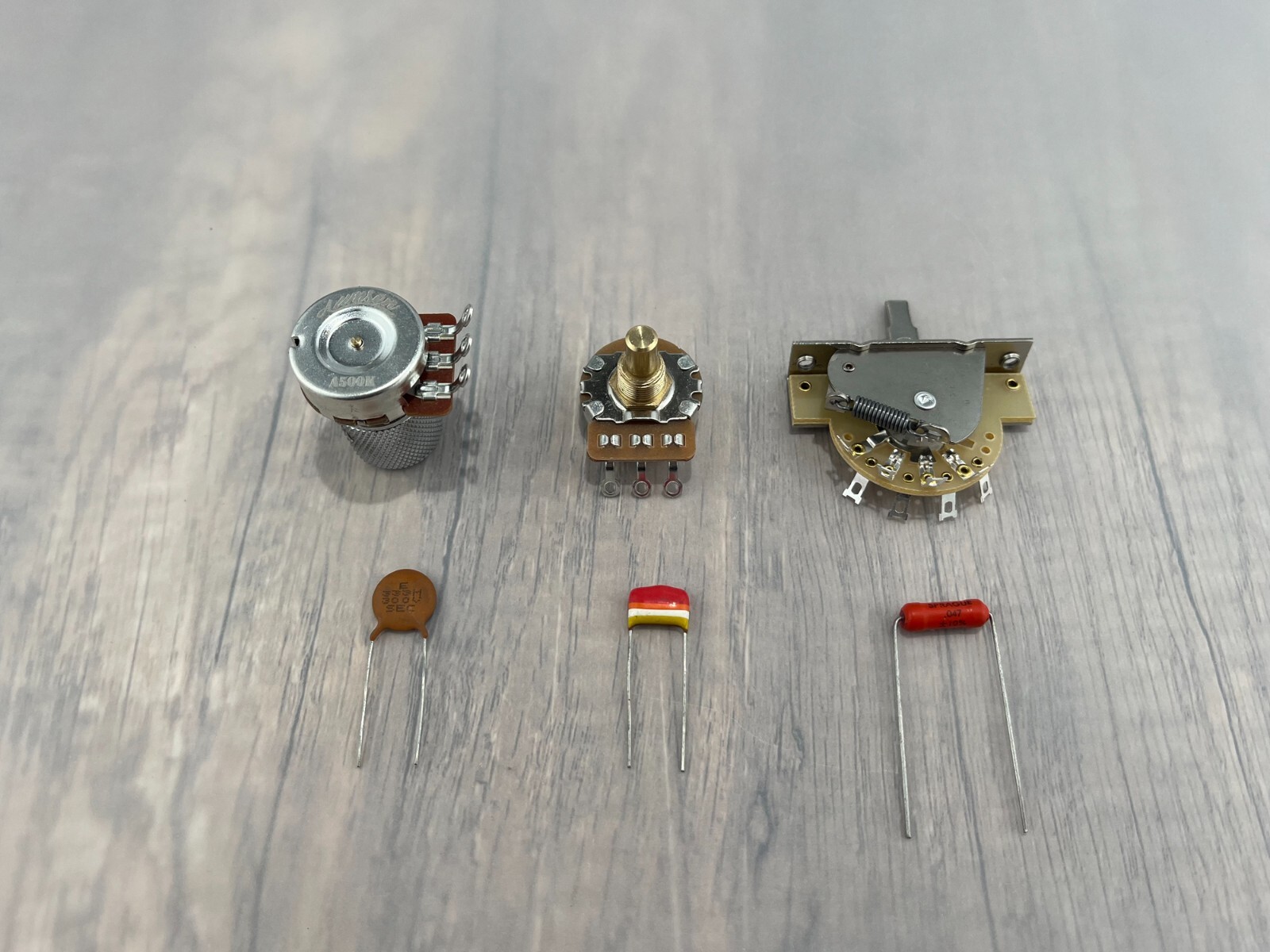

- Select the potentiometer and capacitor combination first; the description, photos and specification table follow that option.
- Confirm pot-shaft dimensions, pickguard holes, switch clearance and control-cavity depth against your guitar.

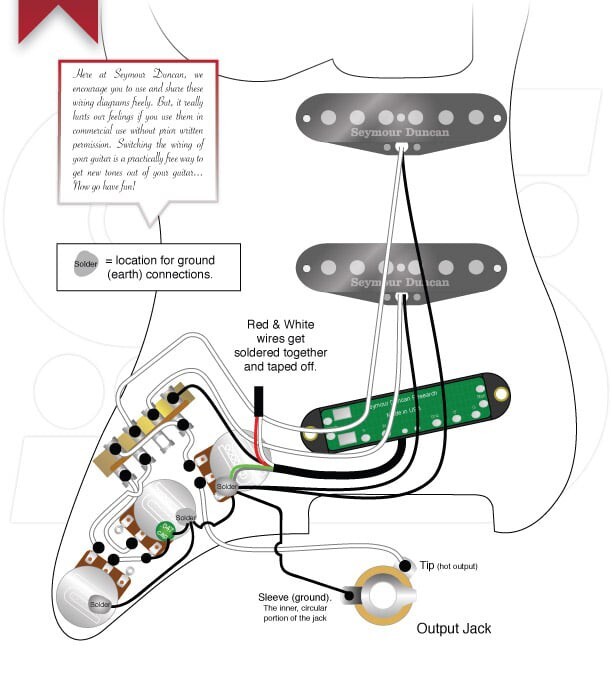

- Check the pickup wiring and desired bridge-tone connection before installation. Ask for a wiring diagram if it is not shown.
Package contents
Check this page’s description and specifications for the selected option. If package contents are unclear, ask us before ordering. A photo alone does not confirm that accessories or a printed drawing are included.
