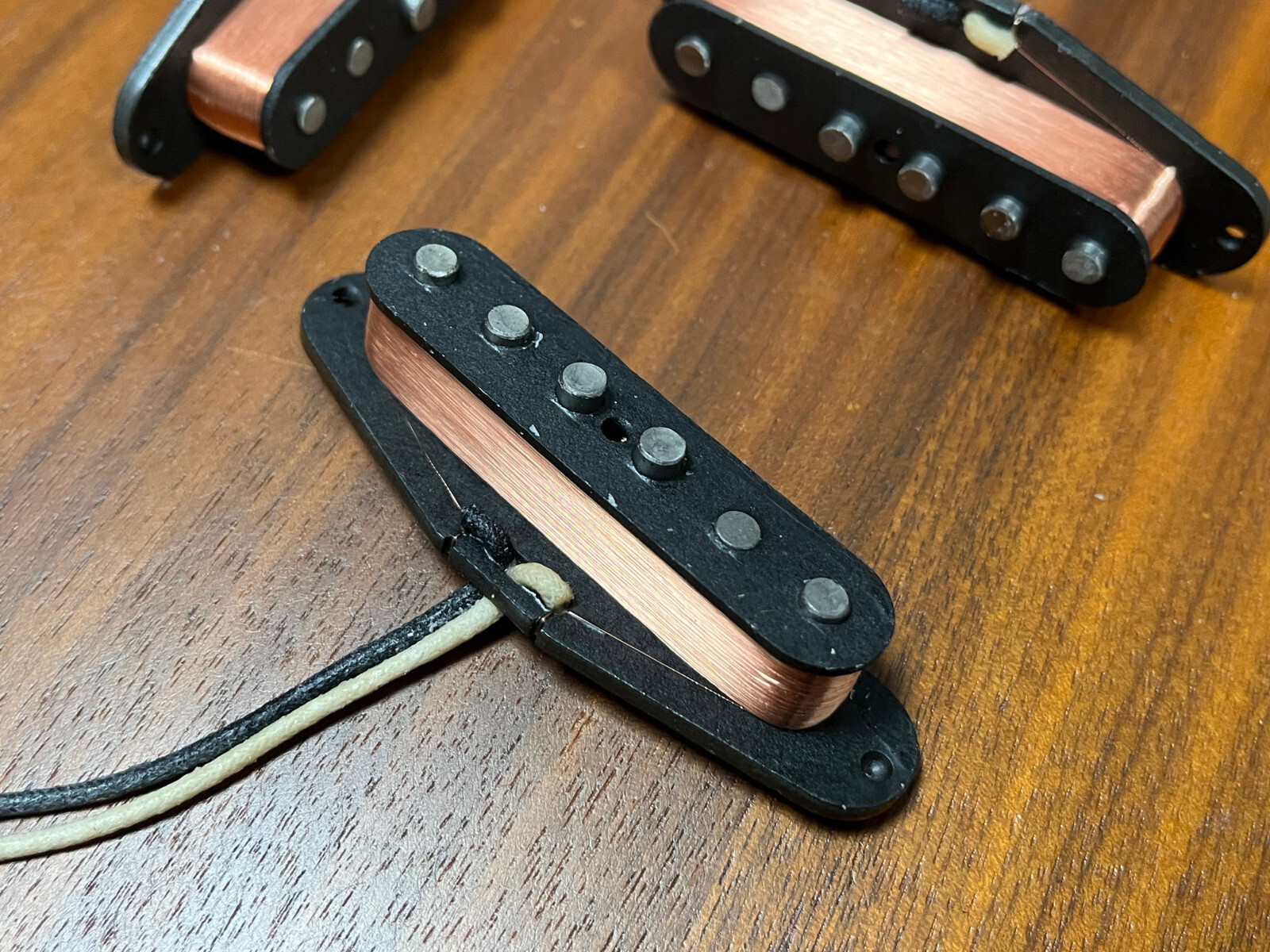

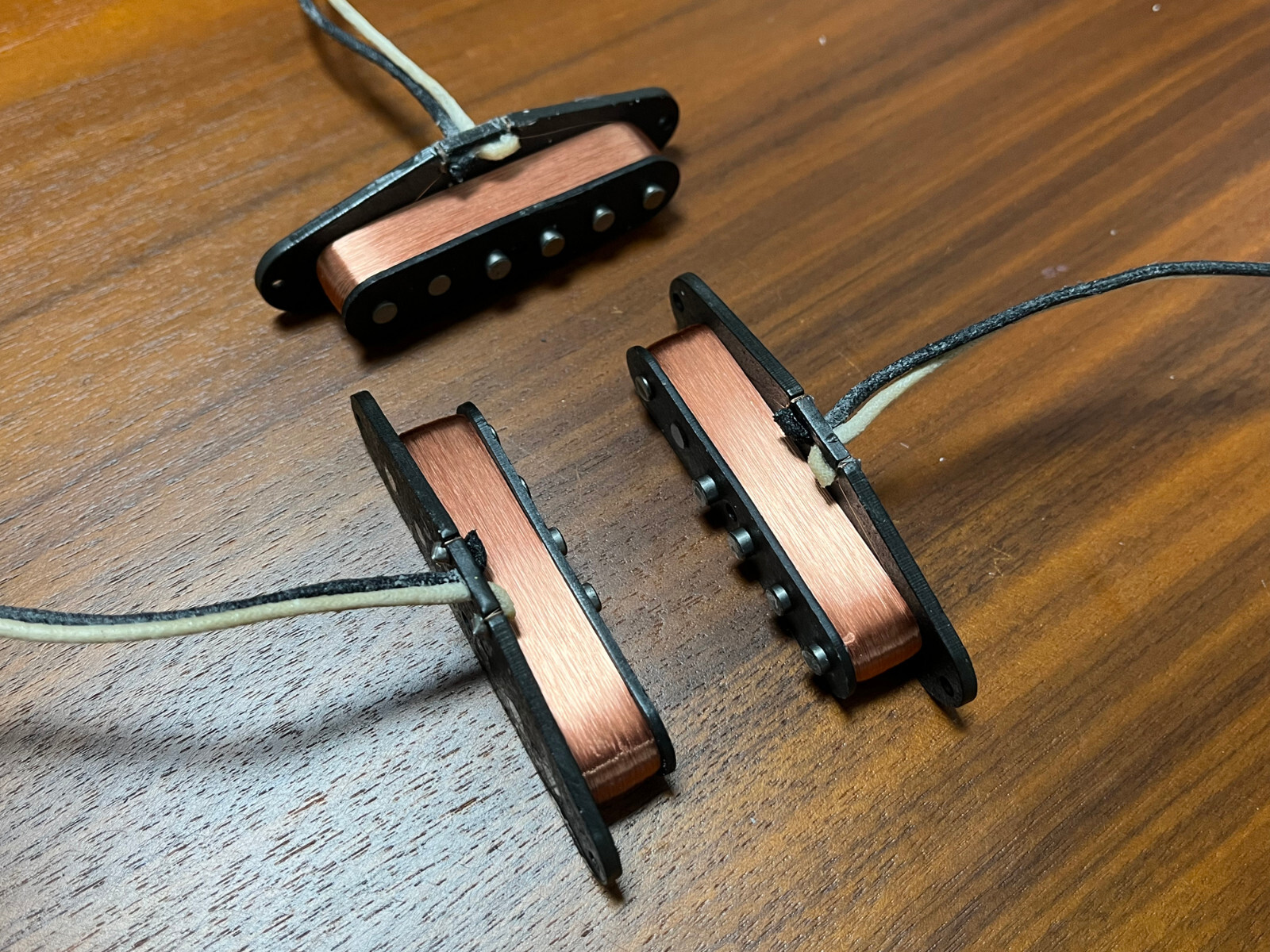

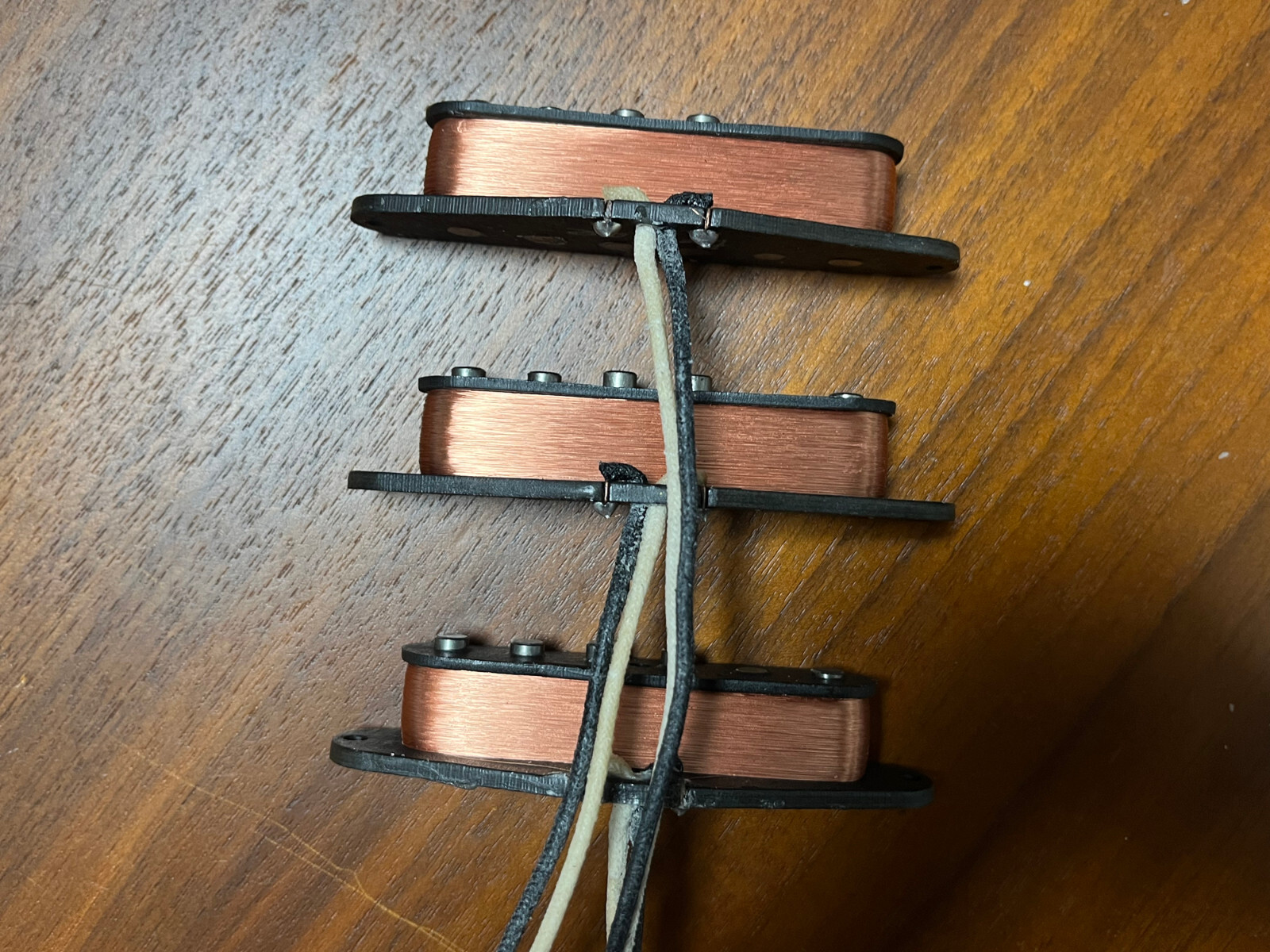

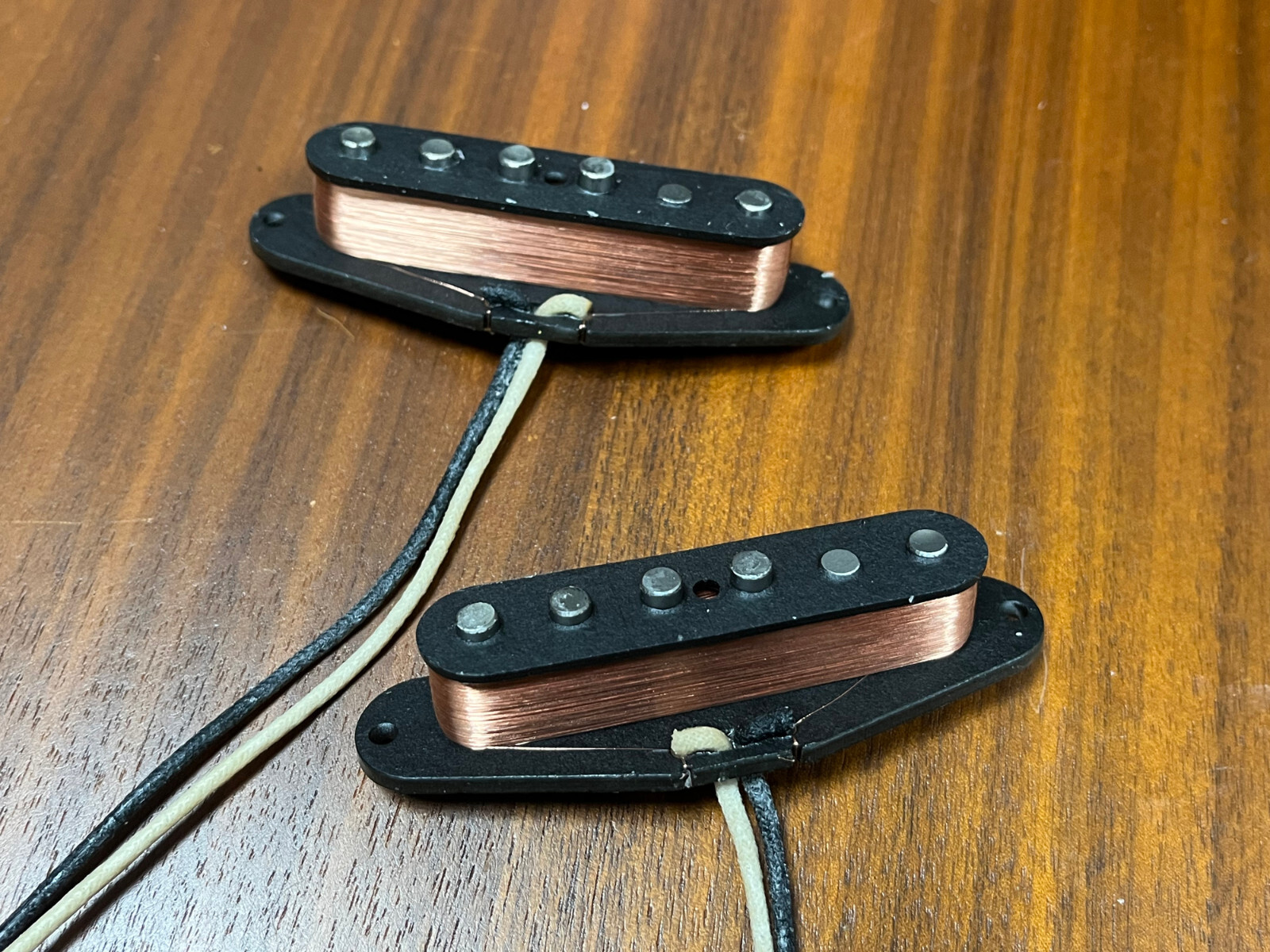

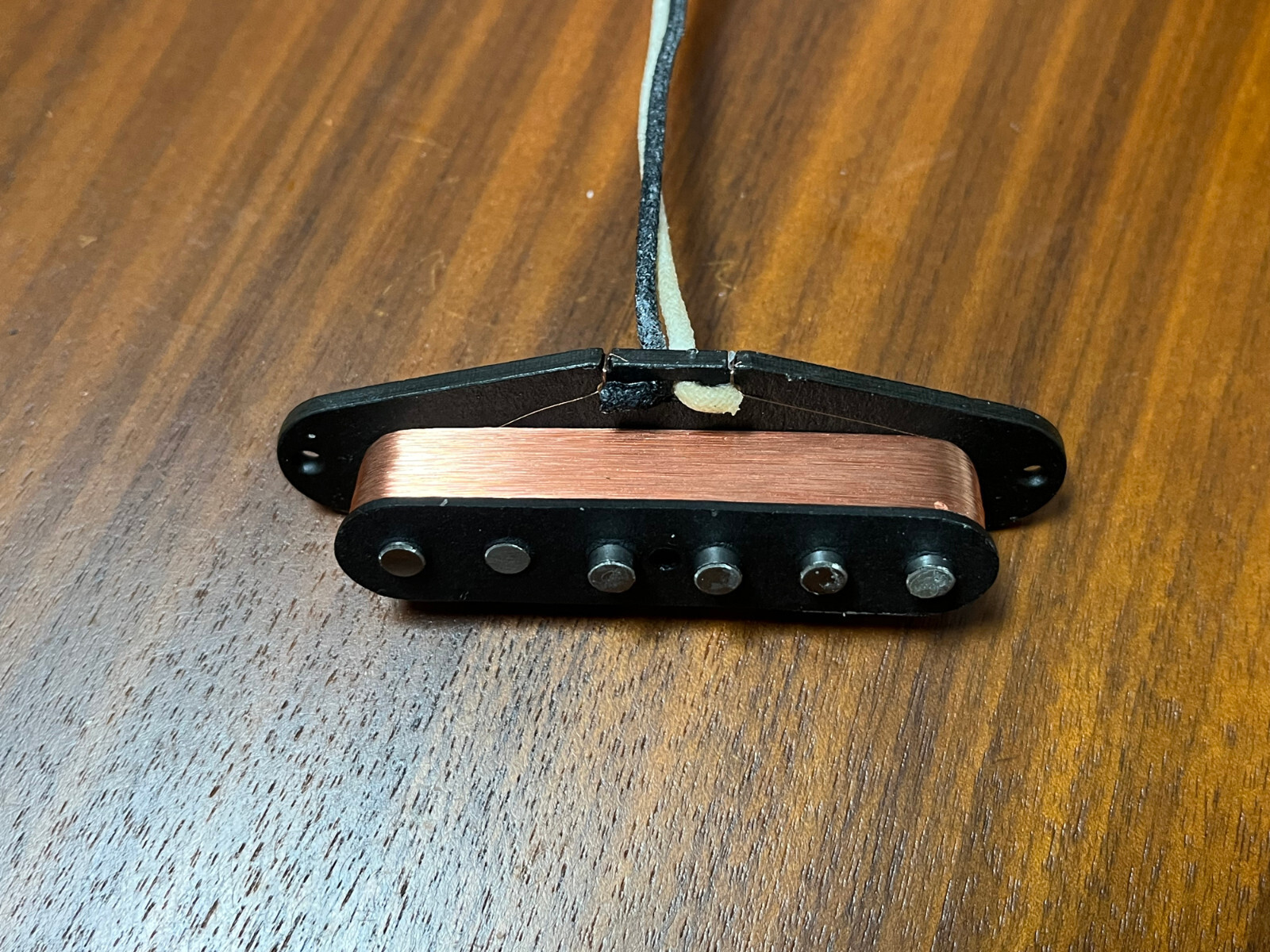

AUMSEN Electric Guitar Pickups Fat60's style single coil pickup.
A Fat 60s-style single-coil pickup set using Alnico 2 magnets and ELEKTRISOLA 42 AWG wire. The listing gives separate neck, middle and bridge measurements, making it easier to compare the set with an existing instrument.
SKU 266807644016
$24.99 USD
Taxes and import duties included. Delivery is shown in your cart.
| Specification | Details |
|---|---|
| Magnet | Alnico 2 |
| Test conditions | 25°C room temperature, 1000Hz |
| Neck | 6.00k DC resistor; 6.60k resistance; 2.70h inductance |
| Middle | 6.00k DC resistor; 6.60k resistance; 2.70h inductance |
| Bridge | 6.20k DC resistor; 6.90k resistance; 2.85h inductance |
| Pole spacing | 2-1/16" (52.39mm) |
| Pole-piece diameter | 3/16" (4.76mm) |
| Mounting spacing | 3" (76.2mm) |
| Wire | ELEKTRISOLA 42 AWG |
| Screws | 6-32 pan head, nickel plated |
Check the listed material, finish and dimensions for this specific part.
Use the available dimension photos, or request measurements before ordering.
Website checkout prices include taxes and import duties. Ships from China to the United States, Australia, Japan, United Kingdom, Germany and Italy. Delivery is shown separately in your cart.
Read our website Returns & Shipping policy before ordering.
Fitment questions? Email contact@aumsen.com — we reply within 1–2 business days.
Before you order
Model names identify the wording in the catalogue, not a verified fit for every year or version. Match your existing part’s dimensions, mounting pattern and threads. Ask us before drilling or modifying your guitar.
Package contents
Check this page’s description and specifications for the selected option. If package contents are unclear, ask us before ordering. A photo alone does not confirm that accessories or a printed drawing are included.
Ask about this part’s fit, dimensions or included hardwareRelated Products
Fender Stratocaster Custom Modern, Bridge Tone Wiring Harness, 5-Way
A Strat-style bridge-tone wiring harness with low-torque audio-taper potentiometers, a five-way switch and vintage-style Gavitt cloth wire. Choose the potentiometer and capacitor combination below; the listed photos and specifications change with your selection.
6 options
AUMSEN Electric Guitar Pickups Fat50's style single coil pickup
A Fat 50s-style single-coil pickup set using Alnico 5 magnets and ELEKTRISOLA 42 AWG wire. Neck, middle and bridge measurements are listed separately to help you assess the set for your build.
3-Way Blade Switch for Telecaster With Mounting Screws
A three-way blade switch for a Tele-style control layout. It is supplied with mounting screws and a barrel knob; check the mounting-screw distance against your existing plate.

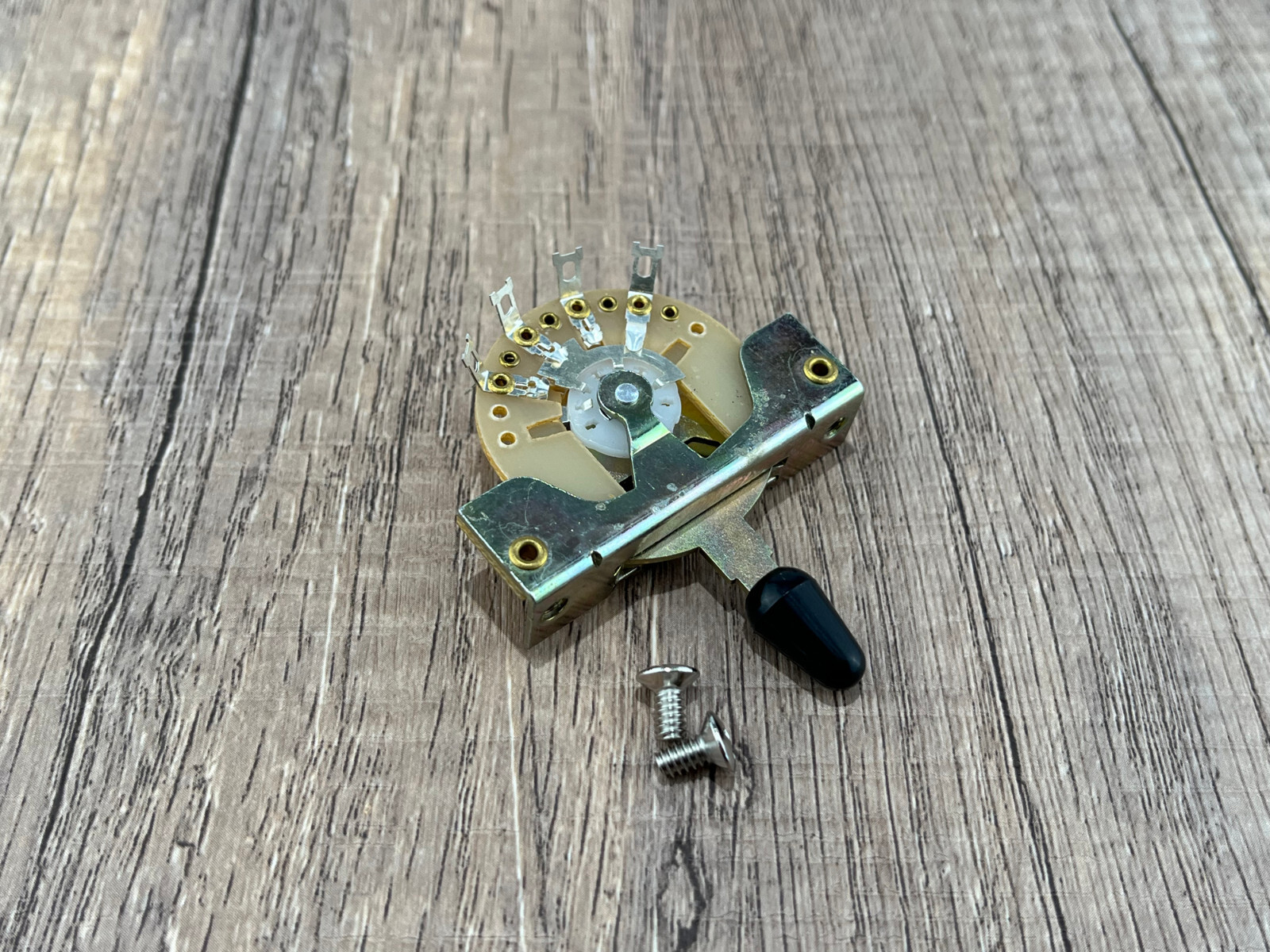

5-Way Blade Switch for Telecaster With Mounting Screws
