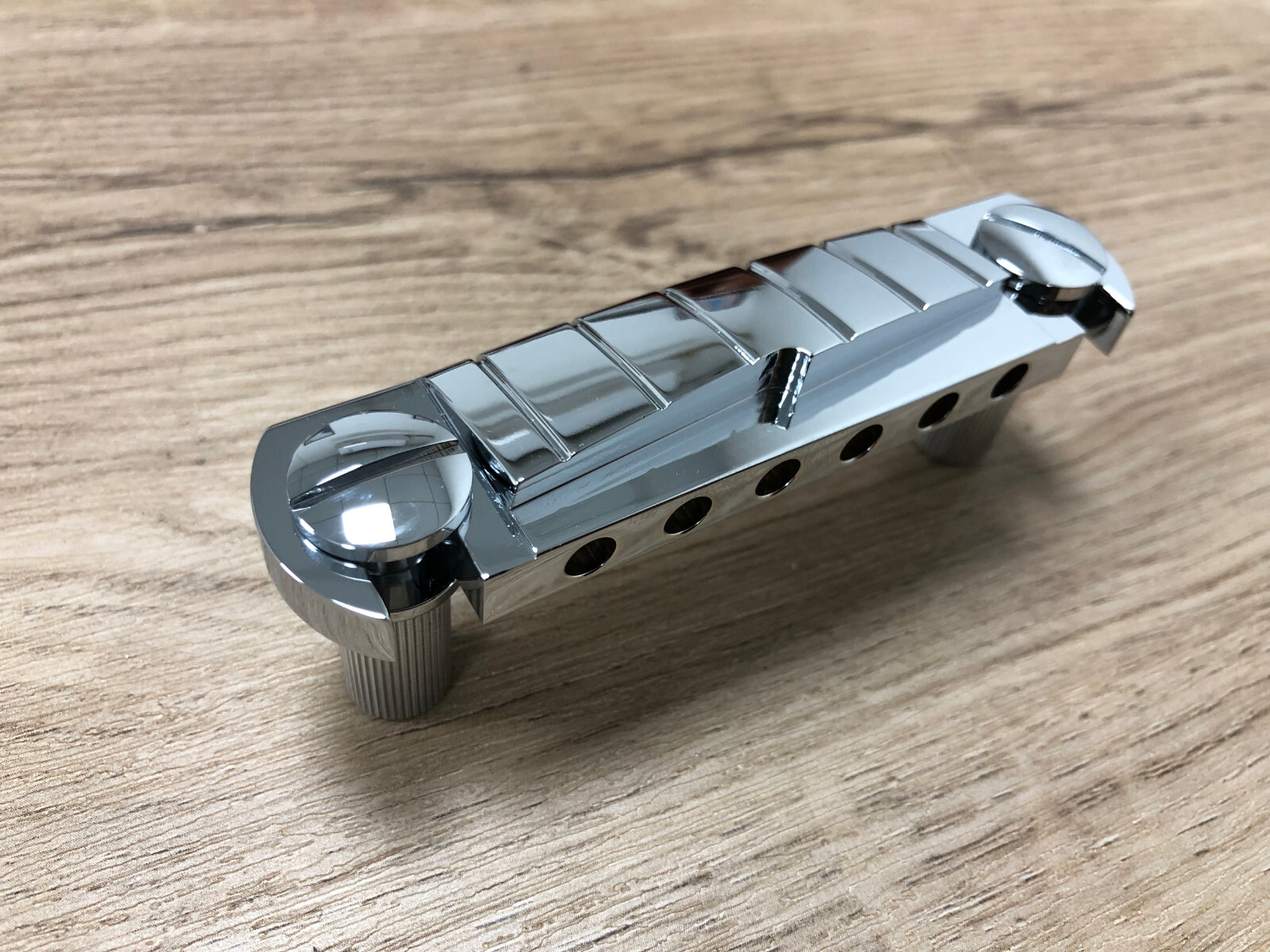

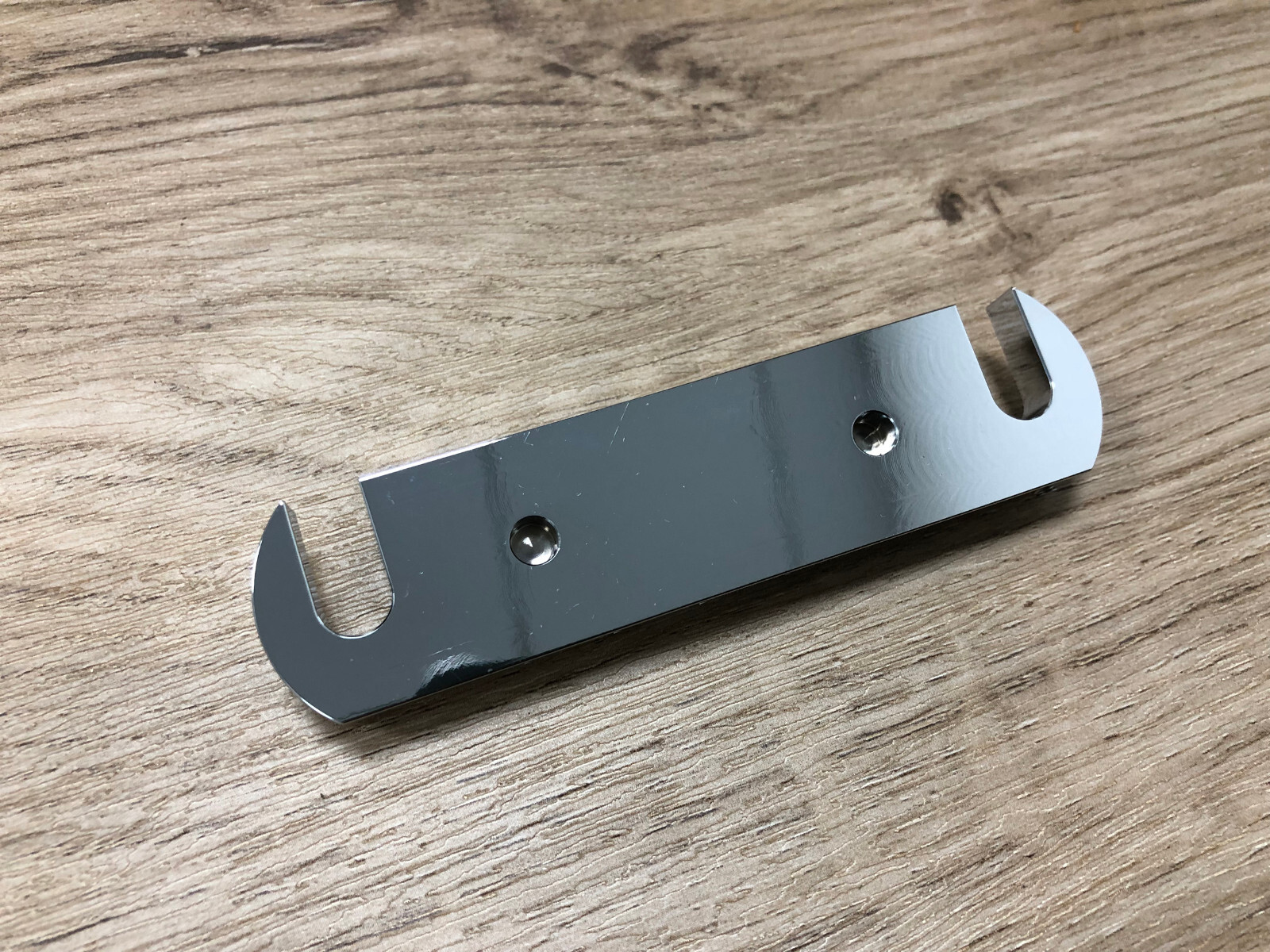

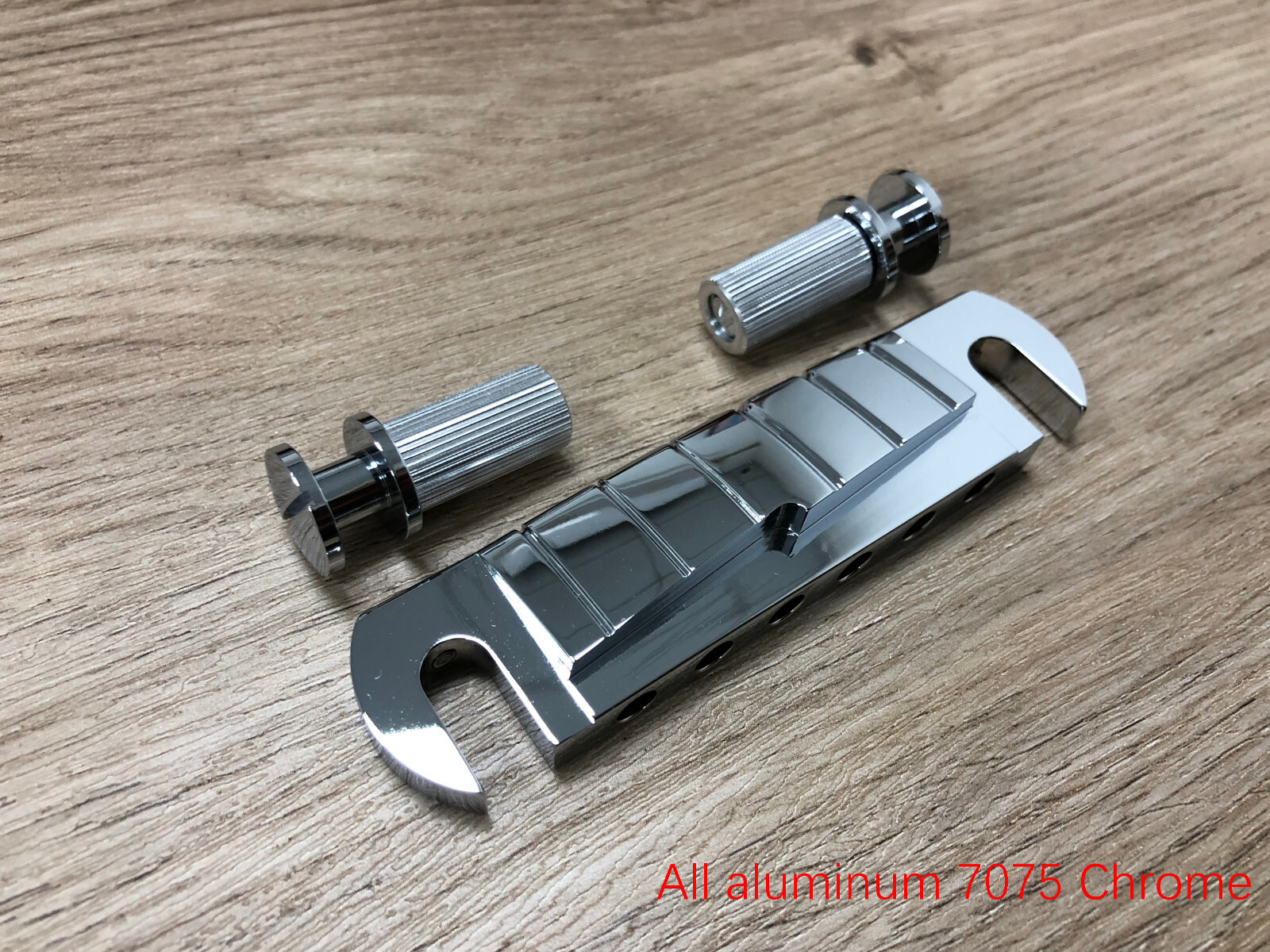

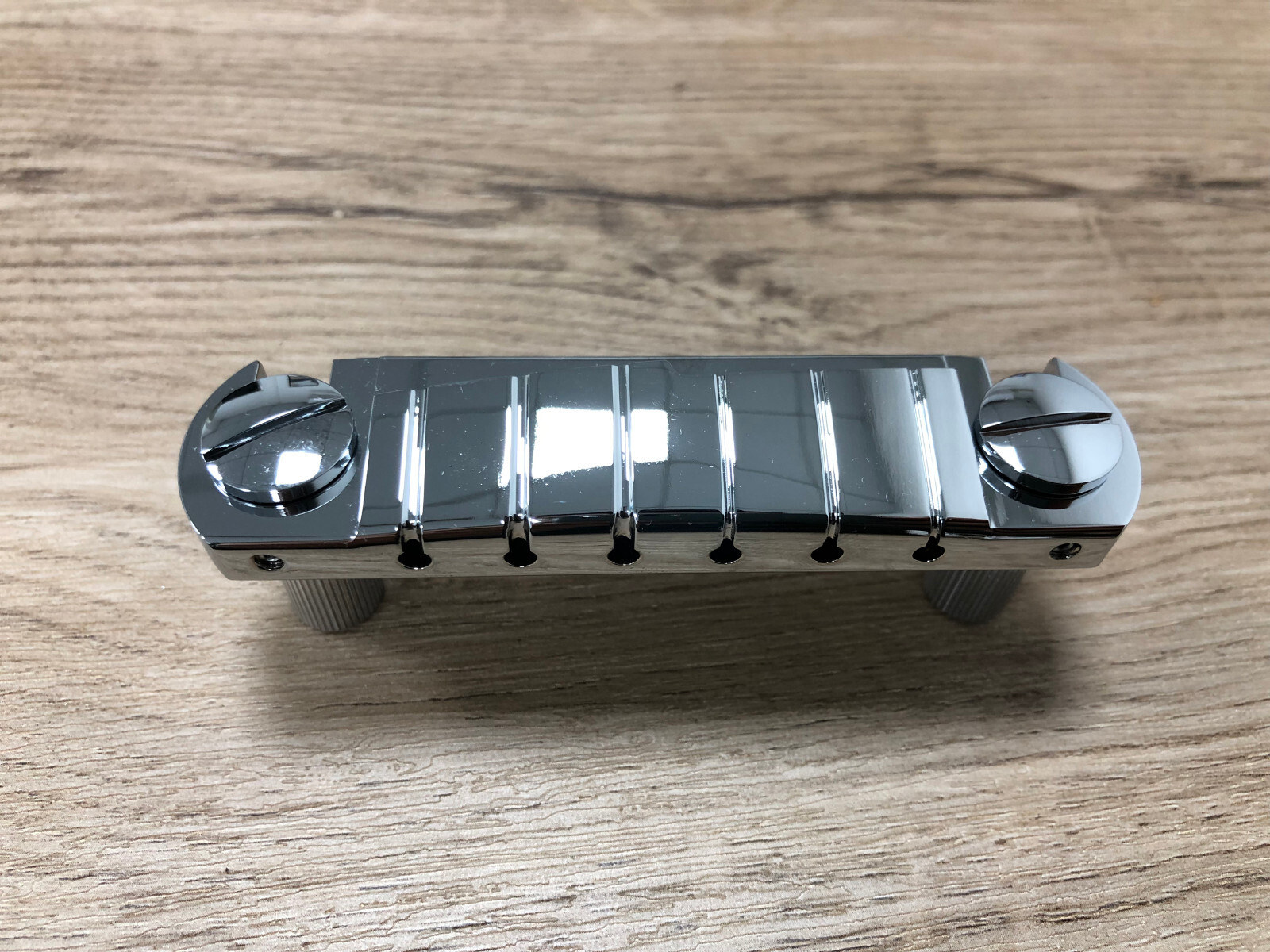

Aumsen PRS Style Wraparound Bridge Tailpiece（aluminum alloy）.
A PRS-style wraparound bridge and tailpiece with an aluminum-alloy body, built-in intonation curve and string slots. Hex screws move the bridge forward or back for overall intonation adjustment; the included brass posts and bushings use the listed imperial thread.
SKU 266982220722
$28.99 USD
Taxes and import duties included. Delivery is shown in your cart.
| Specification | Details |
|---|---|
| Body | aluminum alloy |
| String spacing | 52.5mm |
| Post spacing | 81mm (3.19") |
| Posts and bushings | brass |
| Post thread | 5/16-24 imperial |
| Adjustment | hex screws move the whole bridge forward/backward |
| Connection | unplated contact between stoptail, posts and body |
Check the listed material, finish and dimensions for this specific part.
Use the available dimension photos, or request measurements before ordering.
Website checkout prices include taxes and import duties. Ships from China to the United States, Australia, Japan, United Kingdom, Germany and Italy. Delivery is shown separately in your cart.
Read our website Returns & Shipping policy before ordering.
Fitment questions? Email contact@aumsen.com — we reply within 1–2 business days.
Before you order
Model names identify the wording in the catalogue, not a verified fit for every year or version. Match your existing part’s dimensions, mounting pattern and threads. Ask us before drilling or modifying your guitar.
Package contents
Check this page’s description and specifications for the selected option. If package contents are unclear, ask us before ordering. A photo alone does not confirm that accessories or a printed drawing are included.
