AUMSEN Brass Stop Tailpiece Chrome With Metric Studs Chrome.

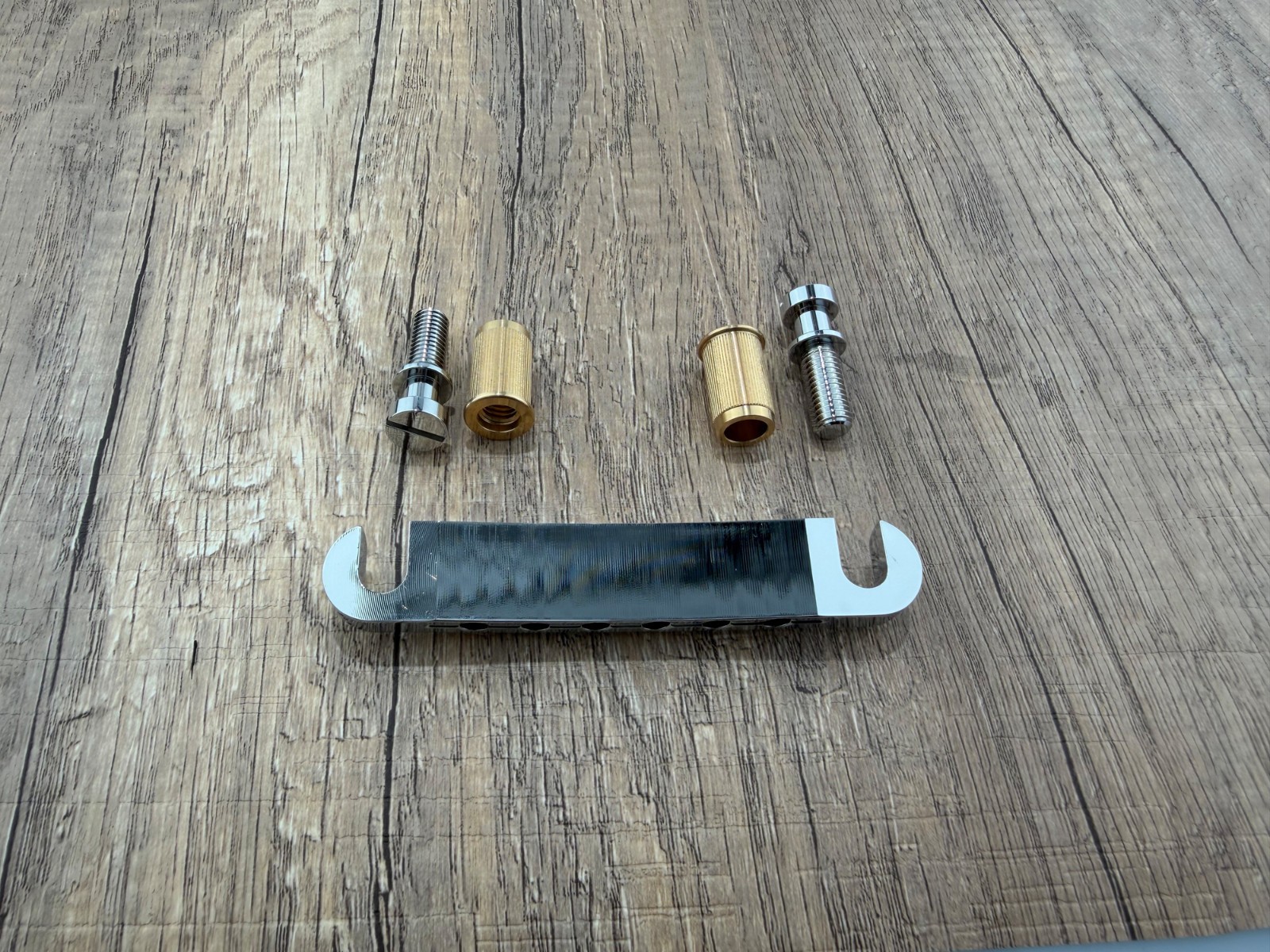

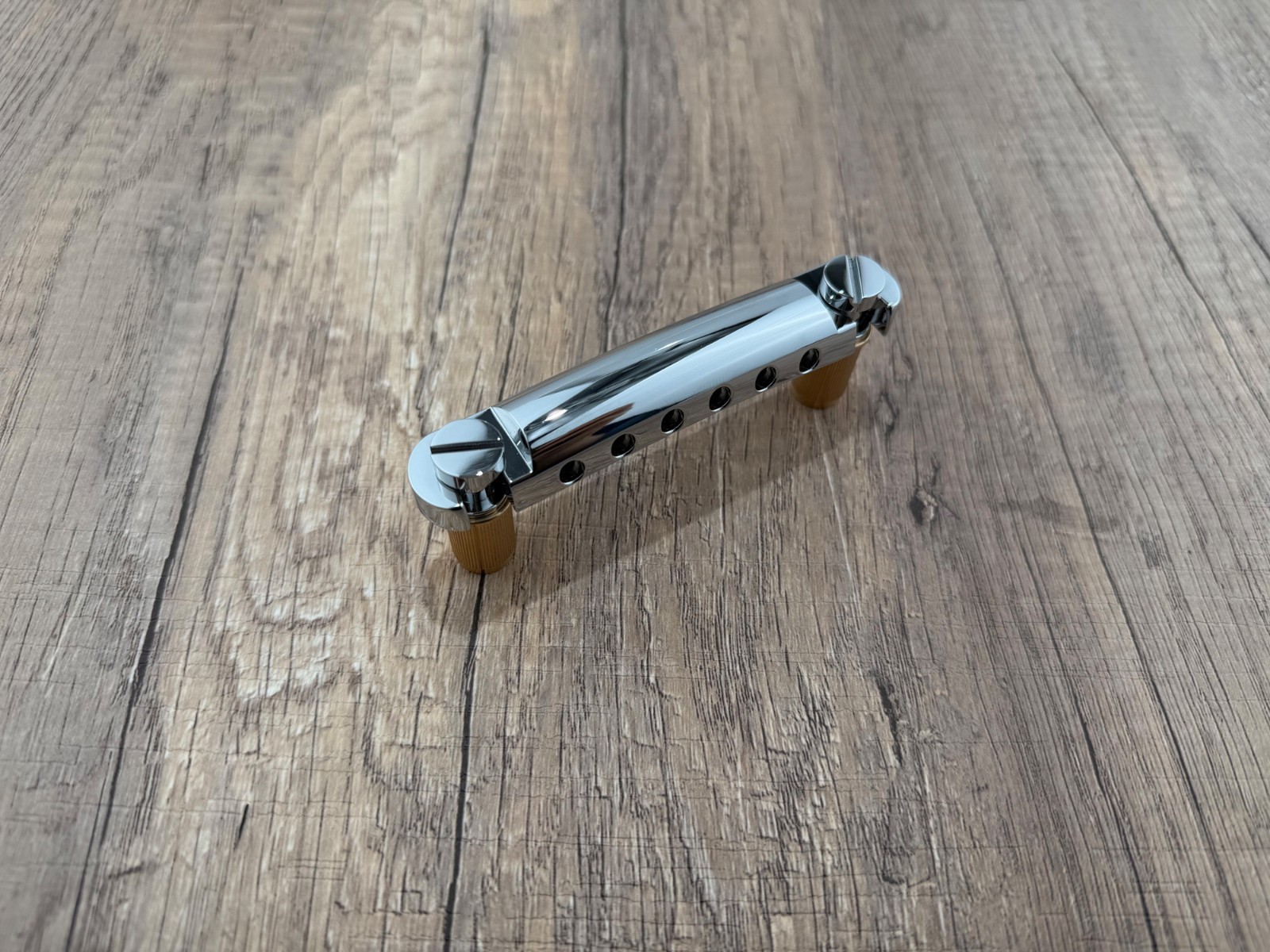

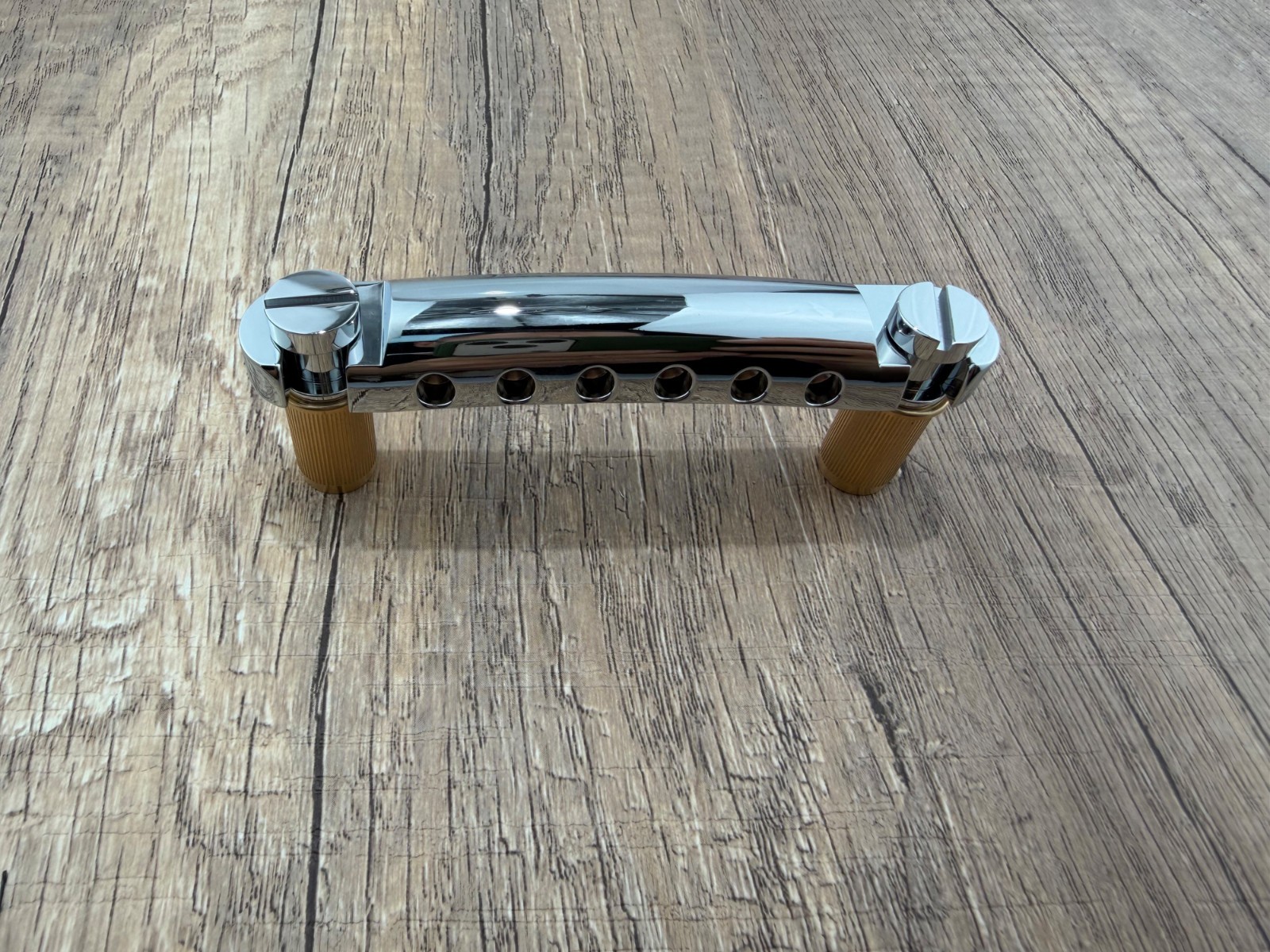

A CNC-machined brass stop tailpiece in chrome finish, supplied with metric studs and anchor bushings. It supports front- or rear-entry stringing; check the stud and string spacing before fitting.
SKU 267497314623
$31.99 USD
Taxes and import duties included. Delivery is shown in your cart.

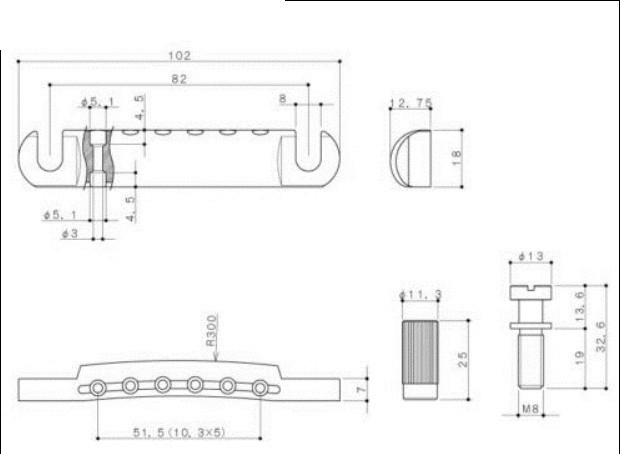

| Specification | Details |
|---|---|
| Material | all brass |
| Process | CNC machining |
| Finish | chrome |
| Stud spacing | 3-1/4" (82mm) |
| String spacing | 2" (51.5mm) |
| Included studs | M8 × 1.25 metric, with anchor bushings |
| Stringing | front or rear |
Check the listed material, finish and dimensions for this specific part.
Use the available dimension photos, or request measurements before ordering.
Website checkout prices include taxes and import duties. Ships from China to the United States, Australia, Japan, United Kingdom, Germany and Italy. Delivery is shown separately in your cart.
Read our website Returns & Shipping policy before ordering.
Fitment questions? Email contact@aumsen.com — we reply within 1–2 business days.
Before you order
Model names identify the wording in the catalogue, not a verified fit for every year or version. Match your existing part’s dimensions, mounting pattern and threads. Ask us before drilling or modifying your guitar.
Package contents
Check this page’s description and specifications for the selected option. If package contents are unclear, ask us before ordering. A photo alone does not confirm that accessories or a printed drawing are included.
